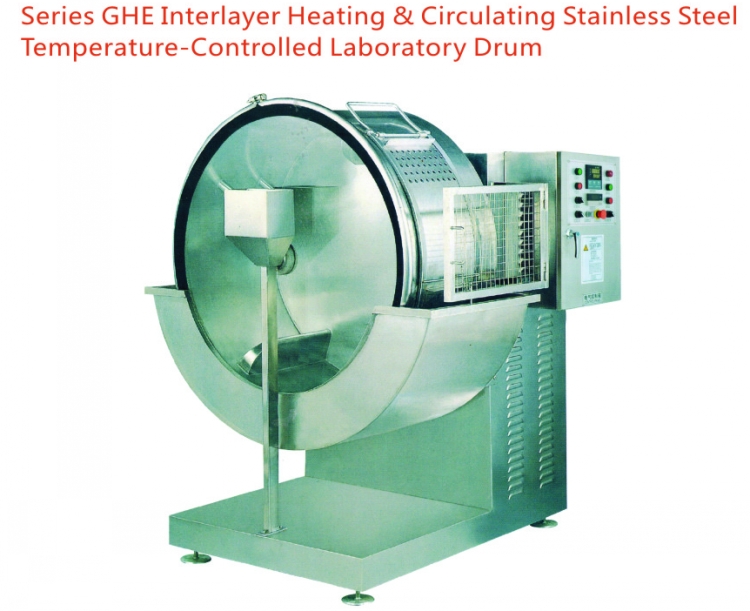

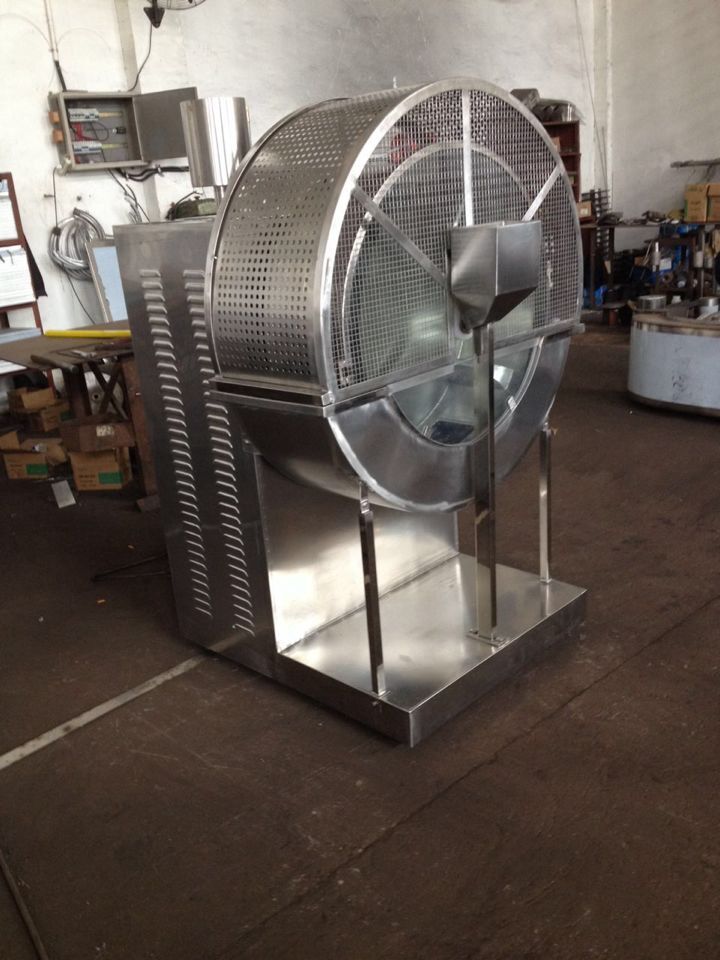

Stainless Steel Temperature-Controlled Laboratory Drum

Short Description:

Model GHE interlayer heating stainless steel temperature-controlled laboratory drum is one of the major equipment used in the laboratory of tannery or leather chemical company to develop new products or new processes. It is suitable for wet operation in preparation, tanning, neutralizing and dyeing processes of leather making.

Model GHE interlayer heating stainless steel temperature-controlled laboratory drum is mainly composed of drum body, frame, driving system, interlayer heating & circulating system and electric system, etc.

Send email to us

Product Detail

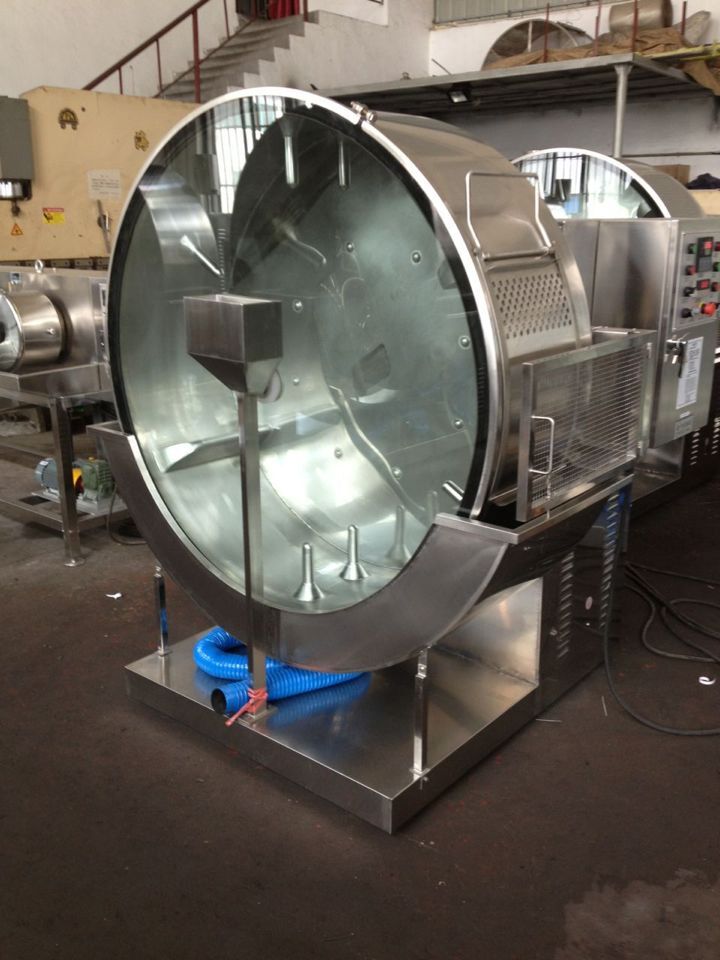

About Stainless Steel Test Drum

The drum is equipped with a sealed interlayer electric heating & circulating system, which heats and circulates the liquid inside the interlayer of the drum so that the solution in the drum is heated and then be held at that temperature. This is the key feature which differs from the other temperature-controlled drum. The drum body has the advantage of fine structure so that it can be cleaned thoroughly without any residual solution, thus eliminating any phenomenon of dyeing defect or color shading. The quick-operated drum door features light and sensitive in opening & closing operation as well as excellent sealing performance. The door plate is made of superior performance and full transparent, high temperature and corrosion resistant toughened glass so that operator can observe the processing conditions timely.

The drum body and its frame are totally made of superior stainless steel featuring beautiful appearance. A safety guard is provided to the drum for the purpose of security and reliability of operation.

The driving system is a belt (or chain) type driving system equipped with a frequency converter for speed regulation.

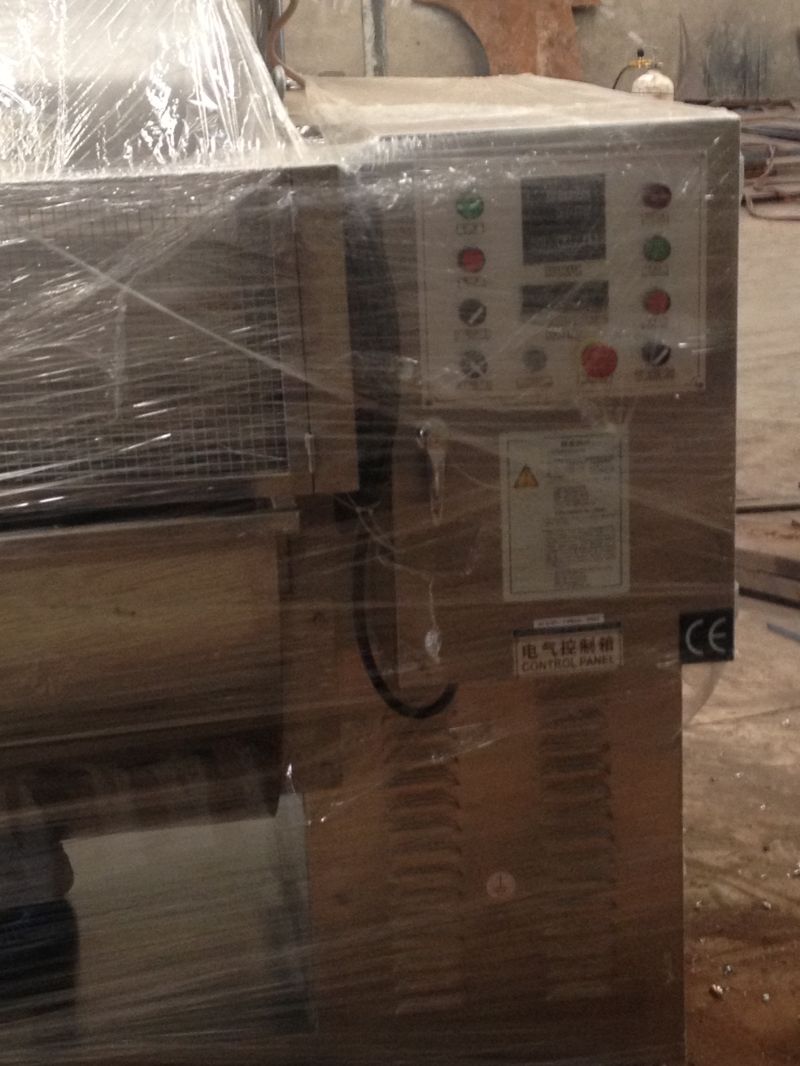

The electrical control system controls forward, backward, inch & stop operations of the drum body, as well as timing operation and temperature control.

Driving System

The drum is driven by a motor through belts (or chain) driving system and its rotation speed is regulated by means of a frequency converter.

The driving system consists of a variable speed motor, V-belt, (or coupling), worm & worm wheel speed reducer, a small chain wheel (or belt wheel) mounted on the shaft of the speed reducer and a big chain wheel (or belt wheel) on the drum.

This driving system has the advantages of easy in operation, low in noise, stable and smooth in start & running and sensitive in speed regulation.

1. Worm & worm wheel speed reducer.

2. Small chain wheel.

3. Big chain wheel.

4. Drum body.

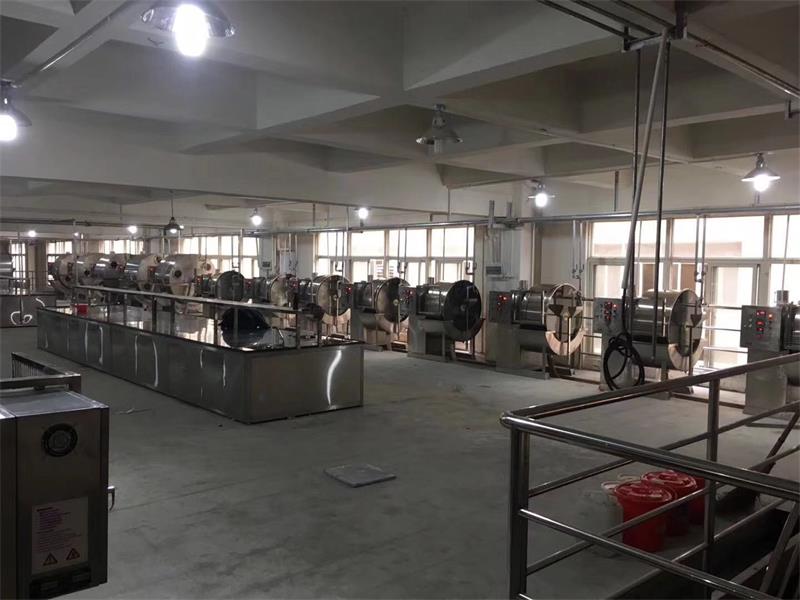

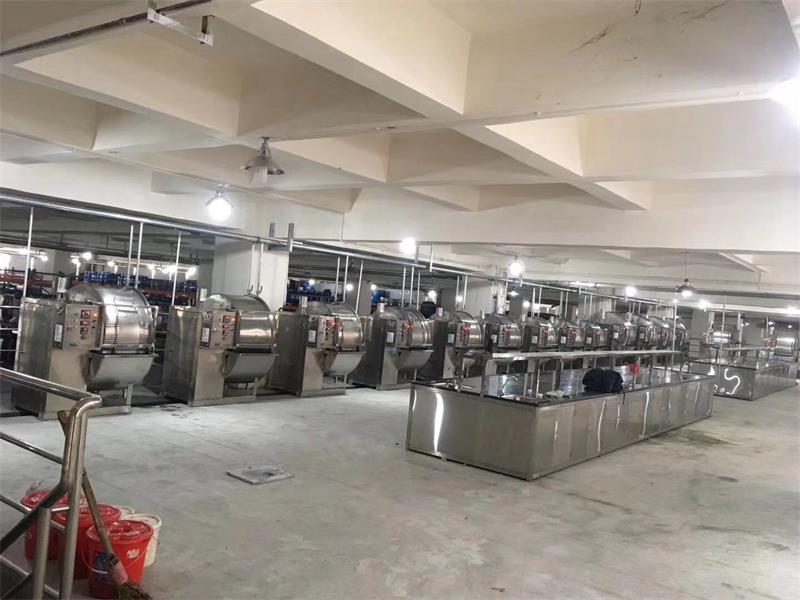

Product Details

Interlayer Heating & Circulating System

The interlayer heating & circulating system of this drum is the key future which differs from the other temperature-controlled drums. It is mainly composed of a hot water circulating pump, a bidirectional rotating connector, an electric heater, and piping system. The heated liquid is circulated in the interlayer by the hot water circulating pump so that the heat can be transmitted into the drum to heat the solution inside the drum. There is a temperature sensor in the circulating system through which the solution temperature is indicated on the programming controller.

Packaging and Transportation

Main Technical Parameters

Model	B/R80	B/R801	B/R100	B/R1001	B/R120	B/R1201	B/R140	B/R1401	B/R160	B/R1601	B/R180
Drum diameter(mm)	800	800	1000	1000	1200	1200	1400	1400	1600	1600	1800
Drum width(mm)	300	400	400	500	500	600	500	600	500	600	600
Effective volume(L)	45	60	100	125	190	230	260	315	340	415	530
Leather loaded(kg)	11	15	23	30	42	52	60	70	80	95	120
Drum speed(r/min)	0-30				0-25		0-20
Motor power(kw)	0.75	0.75	1.1	1.1	1.5	1.5	2.2	2.2	3	3	4
Heating power(kw)	4.5										9
Temperature range controlled(℃)	Room temperature---80±1
Length(mm)	1350	1350	1500	1500	1650	1650	1800	1800	1950	1950	2200
Width(mm)	1200	1300	1300	1400	1400	1500	1600	1700	1700	1800	1800
Height(mm)	1550	1550	1600	1600	1750	1750	1950	1950	2000	2000	2200
