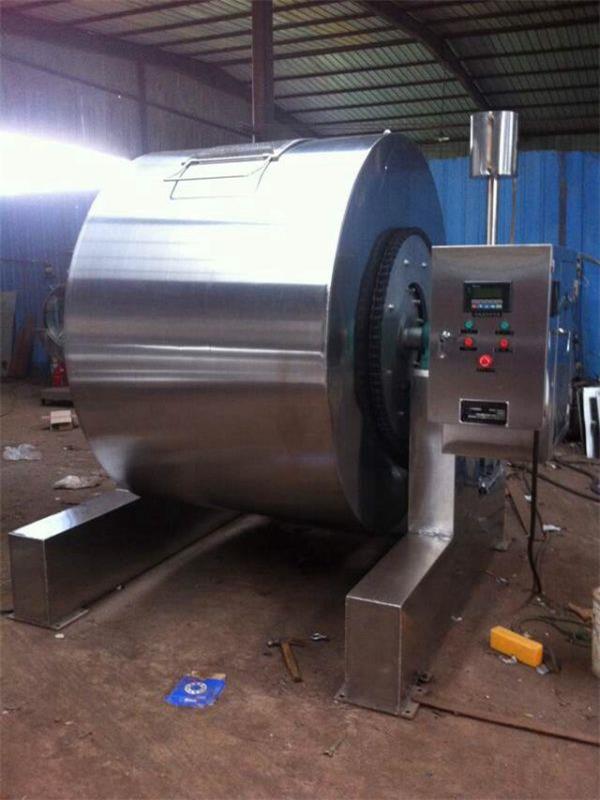

Stainless Steel Temperature-Controlled Laboratory Drum

Short Description:

Series GHR interlayer heating & stainless steel temperature-controlled drum is an advanced equipment to produce top grade leather in tanning industry.  It is suitable for wet operation of preparation, tannage, neutralization and dyeing of various leathers such as pigskin, oxhide and sheepskin.


Product Detail

Characteristics

1. This machine is hanging structure, the overall frame. The whole body are of high quality stainless steel drum, the drum in the residual liquid and waste residue to clean thoroughly, to eliminate the phenomenon of color design and color difference in leather making, specially for dyeing process. Heating circulation system and adopts advanced interlining, drum and intercalation in solution to the complete separation of heating medium, the drum body resting can also heating and constant temperature.

2. This machine is equipped with total timing, timing, positive and negative rotation and single direction function. Work, and reversing time and total time yo-yo intermittent time can be set respectively, so as to realize the continuous or intermittent operation of the drum. Using variable frequency speed regulation, and USES the chain transmission, smooth operation, transmission power is big, durable.

3. The machine adopts electrical heating, heating is controlled by intelligent temperature control instrument system, drum side is equipped with the transparent toughened glass observation window, can observe the conditions of drum in the processing of leather.

4. The drum is driven by a motor through belts (or chain) driving system and its rotation speed is regulated by means of a frequency converter.

The driving system consists of a variable speed motor, V-belt, (or coupling), worm & worm wheel speed reducer, a small chain wheel (or belt wheel) mounted on the shaft of the speed reducer and a big chain wheel (or belt wheel) on the drum.

This driving system has the advantages of easy in operation, low in noise, stable and smooth in start & running and sensitive in speed regulation.

1. Worm & worm wheel speed reducer.

2. Small chain wheel.

3. Big chain wheel.

4. Drum body.

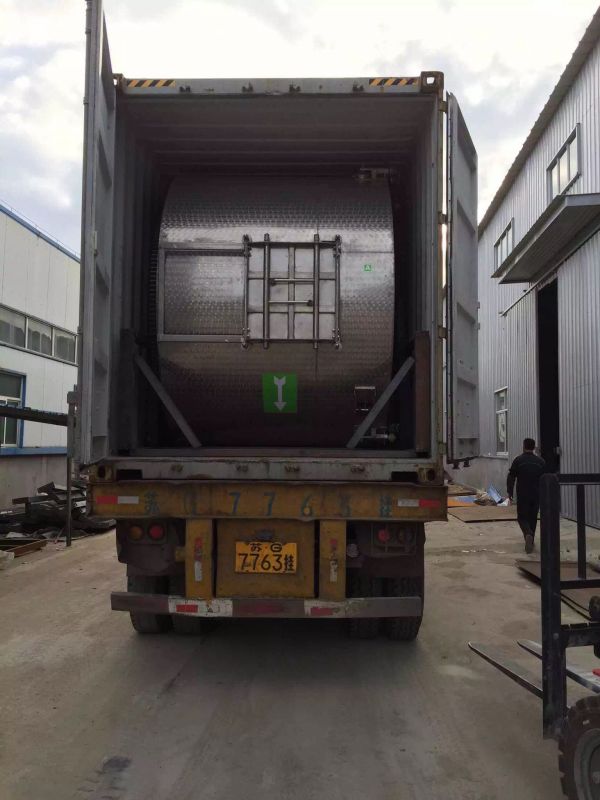

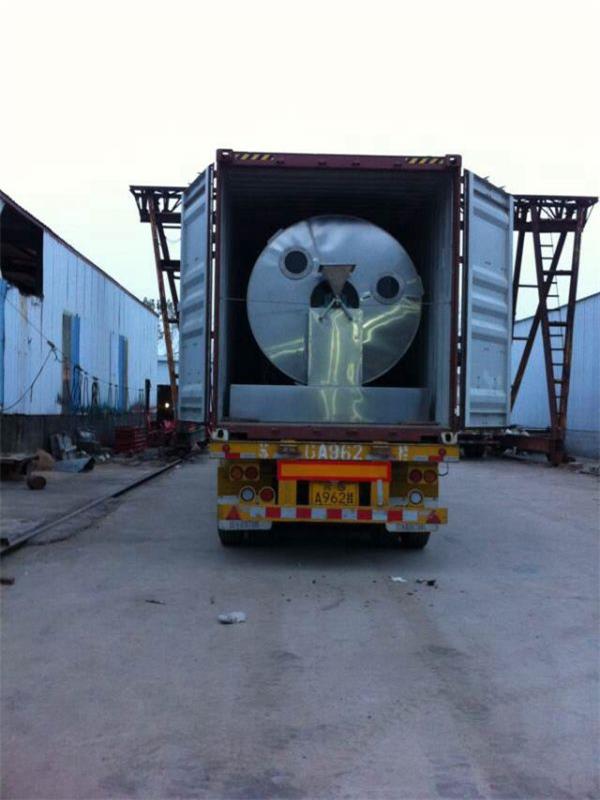

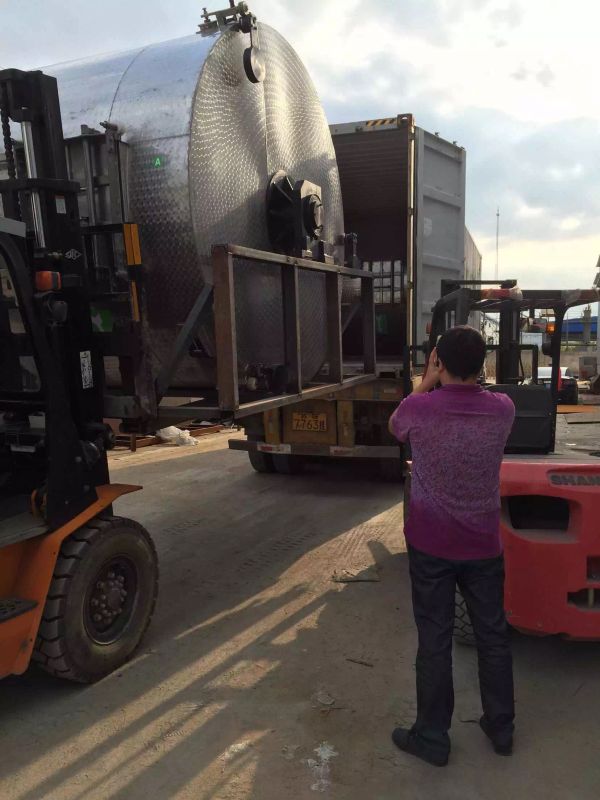

Packaging and Transportation

Stainless Steel Temperature-Controlled Laboratory Drum
Laboratory Drum Shipping
Laboratory Drum Shipping
Laboratory Drum

Main Technical Parameters

Model

R1602

R1603

R1801

R1802

R2001

R2002

R2003

Drum diameter(mm)

1600

1600

1800

1800

2000

2000

2000

Drum width(mm)

1000

1200

1000

1200

1000

1200

1500

Effective volume(L)

600

750

900

1050

1100

1350

1650

Leather loaded(kg)

150

190

225

260

280

350

420

Drum speed(r/min)

0-20

0-20

0-20

0-20

0-18

0-18

0-18

Motor power(kw)

4

4

5.5

5.5

7.5

7.5

7.5

Heating power(kw)

9

9

9

9

9

9

9

Temperature range controlled(℃)

Room temperature---80±1

Length(mm)

2400

2600

2500

2700

2500

2700

3000

Width(mm)

1800

1800

2000

2000

2200

2200

2200

Height(mm)

2000

2000

2150

2150

2450

2450

2450
