Samming And Setting-Out Machine For Cow Sheep Goat Leather

Short Description:

For setting-out and sammying process after retanning & dyeing and before vacuum drying and Toggling drying. Through sammying, reduce moisture content, save energy during drying.


Product Detail

Product Video

A Heavy Type Sammying And Setting-Out Machine

For sammying and setting-out THICK cow, cattle, buffalo leather

1. Two felt rollers, two rubber rollers and one blade roller to form the sammying and setting-out mechanism.
2. Every piece leather is sammed twice during one working process, so sammed more dryer.
3. Every roller has its own driving force, so more stronger setting-out force, increasing the leather-obtaining rate.
4. Imported hydraulic system.

Technical Parameter

Model

Working width

(mm)

Feeding speed

(m/min)

Max sammying pressure (kN)

Total power

(kW)

Dimension(mm)

L×W×H

Weight

(kg)

GJSP-320

3200

0-35

400

55.18

5700×1850×2300

12000

Product Parameter

Model

Working Width(mm)

Feeding Speed (m/min)

Total Power(KW)

Sammying Pressure (KN)

Capacity (Hide/h)

Water After Sammying

Dimension(mm)   L×W×H

Weight(kg)

GJST1-180

1800

6-12

16

40-80

300-400

/

3395×2400×1870

8290

GJST1-240

2400

6-12

16

40-80

300-400

/

3995×2400×1870

9610

GJST1-270

2700

6-12

20

40-80

300-400

/

4295×2400×1870

10270

GJST1-300

3000

6-12

20

40-80

300-400

/

4595×2400×1870

10930

GJST1-320

3200

6-12

20

40-80

300-400

/

4795×2400×1870

11590

GJST-150

1500

5-20

8

200

180

/

2750×2200×1900

4000

GJ3A3-300

3000

5-12

20

600

180

50%±5%

4630×2580×1850

12000

GJST2-300

3000

6-12

20

480×2

120-180

50%±5%

5515×3382×2060

14500

Product Details

Buffing Machine Tannery Machine
Samming And Setting-Out Machine
Samming And Setting-Out Machine For Cow Sheep Goat Leather

B Light Type Sammying And Setting-Out Machine

For sammying and setting-out THIN cow, cattle, buffalo leather

1. Double-bladed roller setting-out mechanism, strong stretch force, increase the leather-obtaining rate more than 7%, can get clean leather surface.
2. Feeding roller driven by hydraulic motor, low noise, variable speed.
3. Two types protection device, ensure operator safety.

Technical Parameter

Model

Working width

(mm)

Feeding speed

(m/min)

Max sammying pressure (kN)

Total power

(kW)

Dimension(mm)

L×W×H

Weight

(kg)

GJZG2-320

3200

0-27

240

37

5830×1600×1625

11000

C Sammying And Setting-Out Machine For Small Skins

For sammying and setting-out sheep, goat and other small skins.

Technical Parameter

Model

Working width

(mm)

Feeding speed

(m/min)

Total power

(kW)

Dimension(mm)

L×W×H

Weight

(kg)

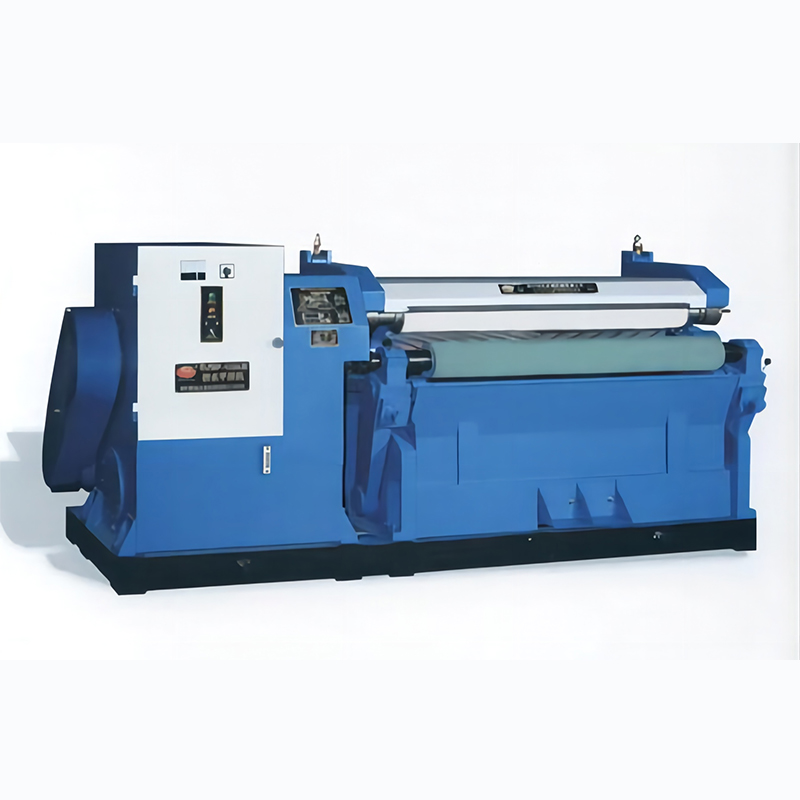

GJSP-150A

1500

3-23

11

3400×1300×1625

3000
