Buffing Machine Tannery Machine For Cow Sheep Goat Leather

Short Description:

For all kinds of leather buffing process, remove the defect during tanning process, highly improve the leather quality.

Product Detail

A Buffing Machine (Big Size)

1. Through feed type ,equipped with pneumatic leather holder.
2. High precision balance test, lower hardness for feeding roller, ensure high buffing quality.
3. Including water cooling device, ensure the buffing roller normal temperature, increase abrasive paper service life.
4. Dust-collector is optional.

Technical Parameters
Model	Working width (mm)	Feeding speed (m/min)	Main power (kW)	Weight (kg)	Dimension(mm) L xW xH
GMG-120	1200	6-15	19.82	2000	2780x1550x1400
GMG-150	1500		23.32	2400	3080x1550x1400
GMG-180	1800		26.82	3000	3380 x1550x1400
GMG-240	2400		35.52	4200	3980 x1550x1400
GMG-270	2700		35.52	4500	4280 x1550x1400
GMG-300	3000		45.2	5500	4580 x1550x1400
GMG-320	3200		45.2	6000	4780 x1550x1400

Product Details

Air Dedusting Machine Technical Parameters

Model	Working width (mm)	Feeding speed (m/min)	power (kW)	Weight (kg)	Dimension(mm)
GQCC-180	1800	4-30	26.75	1300	2700x1350x1300
GQCC-240	2400		39	2000	3300 x1350x1300
GQCC-320	3200		49.5	2800	3900 x1350x1300

JCDB BAGS DUST COLLETOR AND DUST CAKING MACHINE SET are designed and developed on the basis of the international advanced technology and our long-time experience of producing tanning machinery. The machine is used for treating the dust produced by buffing and air blast dusting machine and some other kinds of special machinery, at the same time, it can collect and jam the dust effectively. It can greatly improve the working condition of the buffing and dusting machines etc., and it is conveniently for reclaiming the leather crumbs.

Main Features:

The blower for collecting dust is a special exhaust blower, its entrance is connected with the pipe of suction dust on the buffing and dusting machine, by this pipe, the leather crumbs is transported to the jamming device.

The rotary sweeper collects leather crumbs timely into the feeding entrance of the jamming device.

The piston pushed by an oil cylinder, fully jams the leather crumbs into high-density dust block with its diameter 80mm.

Mod	JCDB-49	JCDB-64
Power	3-380V(±5%)50Hz(±5%)14Kw	3-380V(±5%)50Hz(±5%)17.5Kw
Suction blower	7.5Kw 2.8-3.5m3/s 1200pa	11Kw 4.3-5.3m3/s 1200pa
Jamming frequency	10T/M	10T/M
Weight	2000Kg	2300Kg
Measurements（L×W×H）	3500×1540×3800	4500×2000×3800

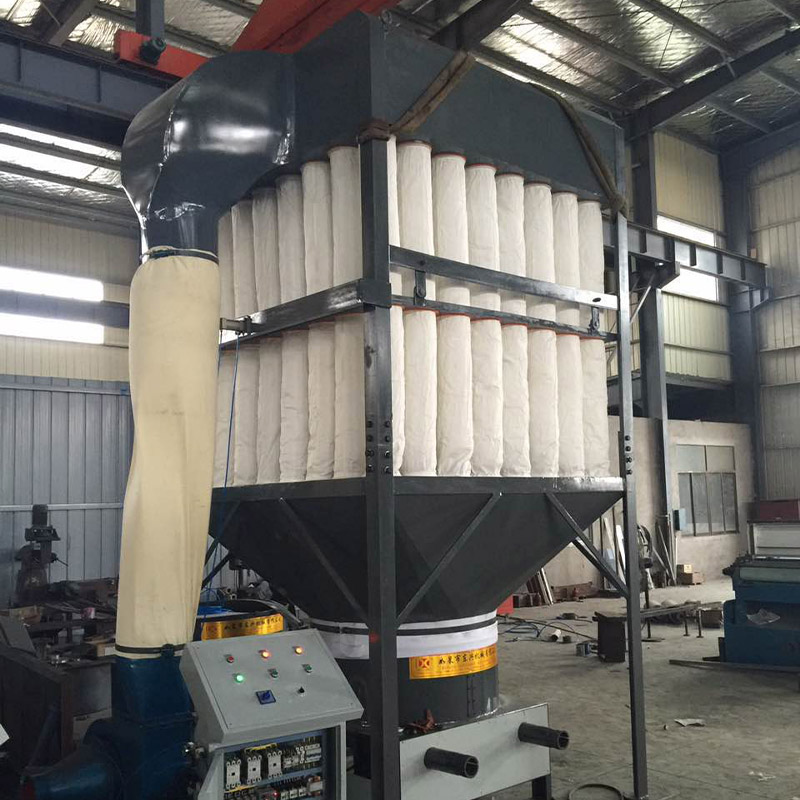

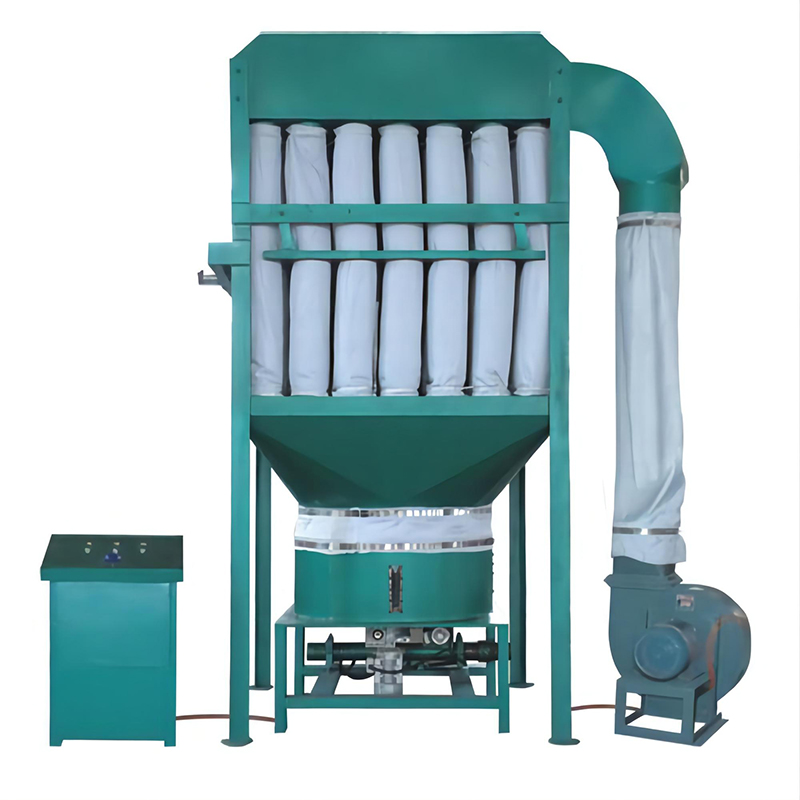

Caking Machine

Model: JCDB-49

Power: 14kW

Suction fan: 7.5kW

Jamming frequency: 10T/M

Weight: 2000kg

Dimension(L×W×H): 3500×1540×3800

B Buffing Machine (Small Size)

1. Absorbing the advanced Italian technology.
2.The medium size buffing machine for improving suede leather and corrected grain leather.

Technical Parameters
Model	Working width (mm)	Feeding speed (m/min)	Power (kW)	Weight (kg)	Dimension(mm)
GMG-30	300	10.8-36	6.97	1000	1650x1060x1340
GMG-60	600	10.8-36	12.47	1200	1650x1250x1340
GMG-80	800	6-15	12.47	1400	1850x1540x1340
GMG-100	1000	6-15	12.47	1600	1850x1790x1340
