Hot New Products Dry Leather Machine - Staking Machine Tannery Machine For Cow Sheep Goat Leather – SHIBIAO Detail:

Product Video

A Vibration Staking Machine

For staking any kind of skin

1.Wet staking : For wet leather after dyeing, soften the leather fiber, increase leather obtain rate.

2.Dry staking : For semi-finished leather and finished leather:
For cattle skin: the pins are bigger and sparse in distribution, equipped with nylon bars on in the final heads to remove beating marks of leather.
For sheep skin: the pins are smaller and sparse in distribution, equipped with nylon bars on in the final heads to remove beating marks of leather.

Technical Parameters
Model	Working width (mm)	Motor power (kW)	Feeding speed (m/min)	Dimension(mm) L×W×H	Weight (kg)
GLRZ-4R240B	2400	25	0-15	3500×3160×1620	15500
GLRZ-4R280B	2800	25	0-15	3500×3560×1620	17500
GLRZ-4R320B	3200	25	0-15	3500×3960×1620	18200
GLRZ-3R240B	2400	16.5	0-15	3500×3160×1620	14500
GLRZ-3R280B	2800	20	0-15	3500×3560×1620	16500
GLRZ-3R320B	3200	20	0-15	3500×3560×1620	17500
GLRZ-2R240B	2400	14	0-15	2700×3100×1550	10500
GLRZ-2R280B	2800	14	0-15	2700×3500×1600	11500
GLRZ-2R320B	3200	14	0-15	2700×3900×1600	13000

Product Details

staking machine (7)

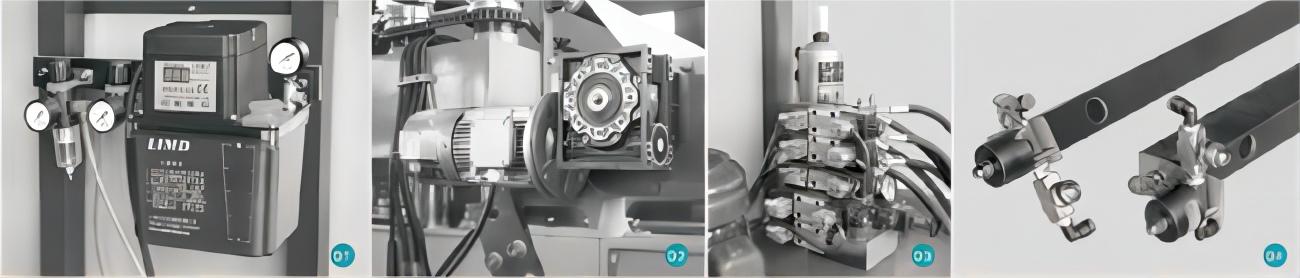

staking machine (5)

B Roller Staking Machine

For staking dried leather of small skins (sheep, goat, pig)

1. Staking and setting- out function.

2. Leather be fine grain and smooth soft, increase yield of leather.

3. Key equipment to improve the quality of soft leather.

Technical Parameters

Model

Working width (mm)

Motor power (kW)

Feeding speed (m/min)

Dimension(mm)

L×W×H

Weight

(kg)

GLRG-150

1500

2-17

3450×1180×1625

3500

C Standing Staking Machine

For staking fur leather

1. Staking and setting- out function.

2. Leather be fine grain and smooth soft, increase leather-obtain rate.

3. Key equipment to improve the quality of soft leather.

Technical Parameters

Model

Working width (mm)

Motor power (kW)

Blade roller speed (rpm)

Feeding speed (m/min)

Production capacity (pc/h)

Dimension(mm)

L×W×H

Weight

(kN)

GLRL-130

1300

9.5

388

5-30

60-120

1890×1600×1600

Product detail pictures:
