Automatic re-blading and balance machine

Short Description:

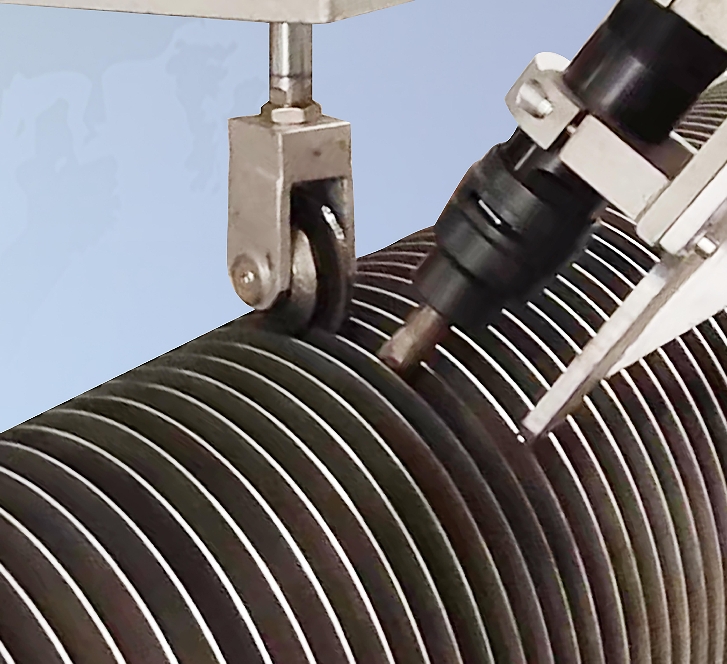

With 20 years of experience in knife loading machines and in-depth understanding of related Italian knife loading machines, we have successfully developed a new type of dynamic balanced fully automatic knife loading machine. The guide rails are manufactured using national standard lathes. The pre-ground knife rollers are of high precision. The ground knife rollers can be installed on the shaving machine and other machines and can be used immediately, eliminating the time waste of re-grinding the knife rollers after they are installed on the machine. The operator only needs to fix the position of the air gun and start the automatic knife loading button, and the knife loading machine can perform its automatic knife loading task. The operator no longer needs to hold the air gun tightly to load the knife himself, making knife loading more convenient and faster.

Send email to us

Product Detail

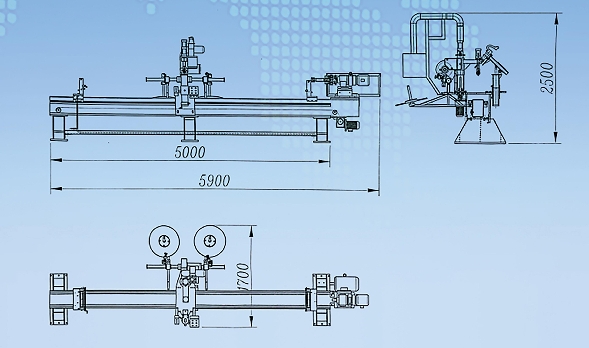

Length： 5900mm
Width： 1700mm
Height： 2500mm
Net Weight： 2500kgs
Total power： 11kw
Average input power： 9kw
Compresses air necessary： 40mc/h

1. The main support structure is based on the support manufacturing accuracy of the national standard lathe. The strong main structure can ensure the service life and accuracy of the machine.
2. Fully automatic knife loading machine design: Since the air gun/pressure/working angle/speed of the knife loading are all precisely calculated, the fully automatic knife loading design is perfect.
3. The left and right copper strip seats are pulled with copper strips and move with the machine, eliminating the inconvenience of the leather factory making their own copper strip seats.
4. The machine guide rails are not contaminated during pre-sharpening, which can ensure the life, accuracy and zero pollution of the machine.
5. The blade positioner and the pneumatic knife of the impact gun are adjustable, and the knife loading action can be easily completed for right-angle or inclined blades.
